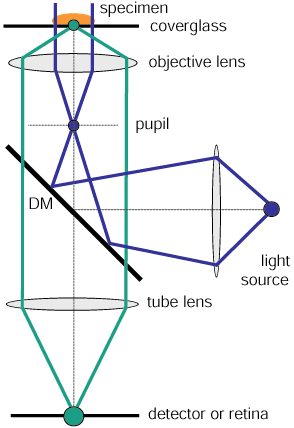

Fig. 6 Optical diagram of basic fluorescence microscope. For excitation of fluorescently-labelled specimen at the focal plane (blue), light source is focused at the pupil (F_b) of objective lens. With tube lens, the emitted fluorescence (green) was concentrated at the plane of detector, or human retina.
