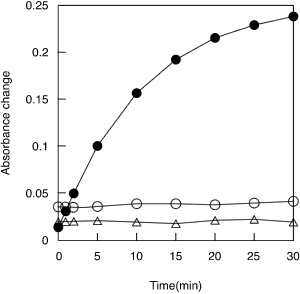

@Fig. 3 Time course of the reduction of NBT and XTT during the oxidation of glucose by glucose oxidase. The assay mixture (2.8 ml) contained the following components as the final concentration: 50 mM glycine-NaOH (pH 9.5), 0.1 mM glucose, and 0.1 mM NBT (), 0.1 mM XTT () or 0.2 mM XTT (). The reaction was initiated by the addition of glucose oxidase solution. The absorbance at 470 (XTT) or 560 nm (NBT) was monitored at 25.

@
